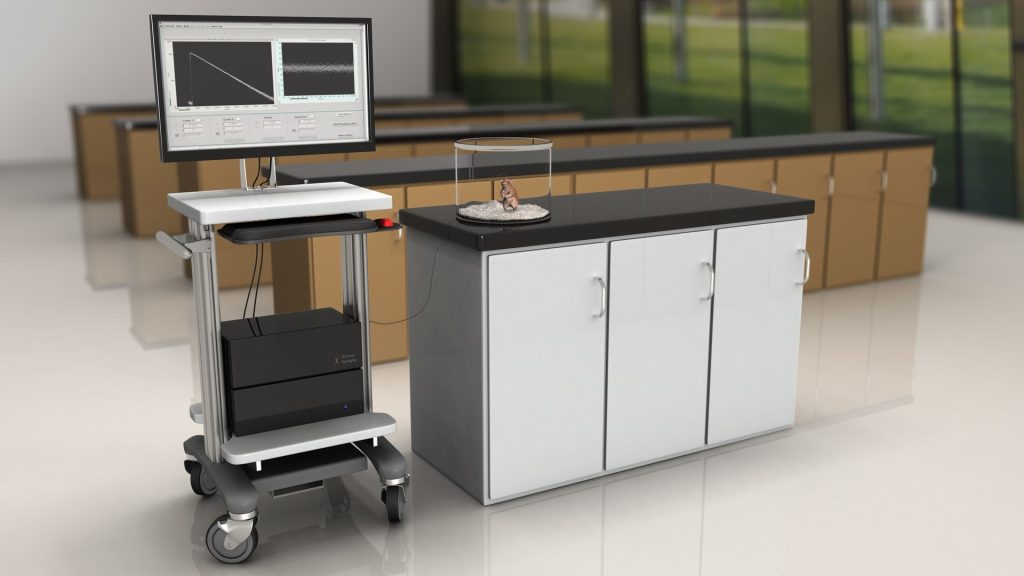

χ2-FL200™ Fluorescence Lifetime System
χ2-FL200™ is a stand-alone and portable spectroscopy system using time-correlated single counting technology (TCSPC) for in vivo fluorescence lifetime measurements and photometry recordings through optical fibers.
χ2-FL200™ is equipped with a picosecond laser and up to four single-photon counting detectors. The hardware includes electronics, optics, and special purpose fiber-optical probes.
The software enables fluorescence lifetime measurements and photometry recordings in freely moving animals. Up to four optical fiber probes with detachable tips allow repeated, long-term, and simultaneous measurements.
Specifications
- TCSPC system with an overall time jitter ~ 100 ps (FWHM)
- Intensity transient recording down to 10 µs sampling interval
- Picosecond pulsed laser source
- Available at 445, 473, 488, 515, or 640 nm
- Up to four single-photon detectors for 450-700 nm
- Synchronization with other devices such as behavioral recording, electrophysiology and optogenetics
- Up to four optical fiber probes with detachable tips
- Comprehensive software for instrument control and data acquisition
- mobile cart and monitor to be purchased separately
